In manufacturing and precision engineering, the components that seem the smallest often carry the biggest responsibility. Carbide pins fall squarely into that category. These tiny cylindrical parts play a critical role in everything from aerospace assembly to medical device production, yet most people outside the industry have never heard of them.
Understanding what carbide pins are and when to use them can mean the difference between a production line that runs smoothly for years and one that requires constant maintenance and costly downtime. For purchasing managers, engineers, and business owners looking to improve manufacturing efficiency, knowing the fundamentals of these hardened components is essential.
What Exactly Are Carbide Pins?

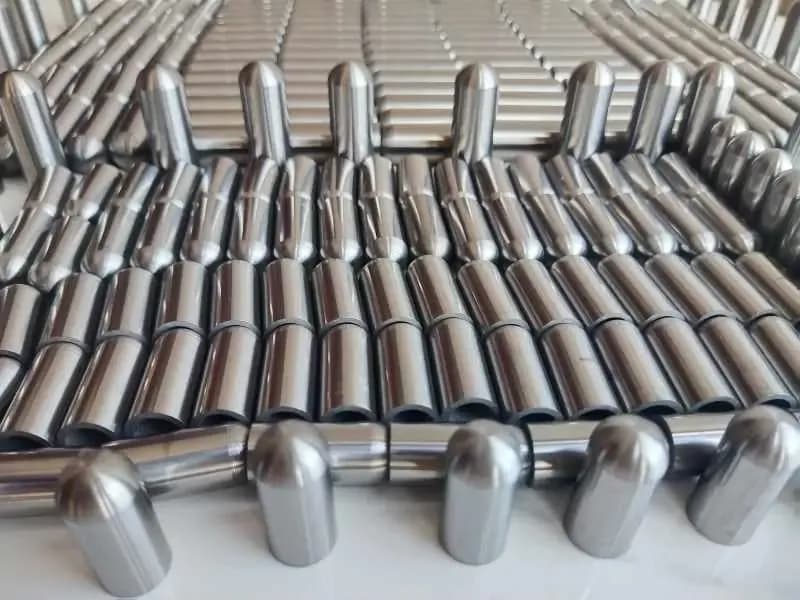

Carbide pins are precision-ground cylindrical components made from tungsten carbide, one of the hardest materials used in industrial applications. The material itself is a compound of tungsten and carbon atoms, creating a substance that ranks between 8.5 and 9 on the Mohs hardness scale. For context, diamond sits at 10.
These pins come in various diameters and lengths, typically ranging from fractions of a millimeter to several inches, depending on the application. The manufacturing process involves sintering tungsten carbide powder at extremely high temperatures, then precision grinding the pins to exact tolerances that often measure within microns.
What sets quality carbide pins apart is the grinding process. American-manufactured pins that meet ISO certification standards undergo rigorous quality control, ensuring each pin maintains consistent diameter, straightness, and surface finish. This level of precision matters when pins are used in jigs, fixtures, and gauges where even slight variations can compromise accuracy.
Alignment and Location Applications
One of the most common uses for tungsten carbide pins is in alignment and location systems. Manufacturing fixtures require components to be positioned exactly the same way, every single time. Carbide pins serve as the reference points that make this possible.
In automotive assembly, for example, fixture plates use carbide pins to locate body panels during welding. The pins slide into corresponding holes, ensuring each panel sits in precisely the right position before robotic welders do their work. Because these fixtures cycle thousands of times per day, the pins need to resist wear that would gradually enlarge the holes and degrade positioning accuracy. The same principle applies in:
- Aerospace jigs for composite layup and drilling operations
- Electronics manufacturing where circuit boards require precise positioning
- Medical device assembly where tolerances are measured in micrometers
- Tool and die construction for stamping and forming operations
Steel pins might work for low volume production or prototyping, but operations running at scale need the durability that carbide provides. A steel pin might last weeks or months; a quality carbide pin can last years under the same conditions.
Wear Resistance in High-Cycle Operations
Manufacturing environments that involve repetitive motion or abrasive contact demand materials that simply refuse to wear down. This is where carbide pins prove their worth beyond initial cost considerations.
Consider a stamping die that produces metal brackets for construction equipment. Each time the die closes, guide pins keep the upper and lower halves aligned. In a facility running three shifts, that die might cycle 50,000 times per week. Steel guide pins would show measurable wear within months, leading to misalignment, poor part quality, and eventually die damage.
Carbide pins in that same application maintain their diameter and surface finish through millions of cycles. The operational savings extend beyond the pins themselves. Less downtime for pin replacement means higher productivity. Consistent alignment means fewer rejected parts. Reduced die wear means lower overall tooling costs.
Punch and Ejector Pin Functions
In injection molding and die casting, tungsten carbide pins often serve as ejector pins that push finished parts out of molds. These pins must withstand not just mechanical stress but also heat and contact with materials ranging from molten aluminum to abrasive-filled plastics.
Standard steel ejector pins can work for less demanding applications, but operations producing glass-filled nylon parts or high-temperature alloys see rapid wear on conventional pins. The abrasive nature of glass fibers acts like sandpaper, gradually enlarging steel pins and creating clearance issues. Carbide’s extreme hardness resists this abrasive wear, maintaining tight fits that prevent flash and ensure clean part ejection.
Similarly, piercing punches in progressive dies benefit from carbide construction. A punch making holes in stainless steel sheet experiences tremendous force and friction with each stroke. Carbide punches maintain sharp edges far longer than tool steel, producing cleaner holes and reducing the frequency of sharpening or replacement.
Gauge and Measurement Components
Precision measurement depends on reference surfaces and points that remain stable over time. Carbide pins appear throughout the measurement world because they simply don’t change dimensions the way softer materials do.
Go/no-go gauges use carbide pins as the actual measuring elements. When a quality control inspector checks hole diameter on a machined part, the carbide pin represents the maximum or minimum acceptable size. If that pin were made from a material that wore even slightly, the gauge would gradually become inaccurate, leading to parts being accepted when they should be rejected, or vice versa.
Coordinate measuring machines (CMMs) sometimes use carbide pins as probe tips or reference features. Surface plate fixtures rely on carbide pins as datum points. In each case, dimensional stability is non-negotiable, and carbide delivers that stability even after years of repeated contact.
When to Choose Carbide Over Other Materials
The decision to specify carbide pins instead of hardened steel or other alternatives comes down to a straightforward calculation: total cost of ownership versus initial investment.
Carbide pins cost more upfront, sometimes significantly more than steel alternatives. For a one-off prototype or a short production run, that higher cost may not make sense. But for any application involving extended production runs, harsh operating conditions, or tight tolerances, carbide typically pays for itself within the first year of operation.
Operations should consider carbide when dealing with abrasive materials, high cycle counts, elevated temperatures, or applications where dimensional accuracy directly affects product quality. Companies committed to lean manufacturing principles recognize that reducing unplanned downtime and improving first pass yield often matters more than minimizing component cost.
Choosing American-manufactured, precision-ground carbide pins adds another layer of value. Consistent quality means less variation between production batches. ISO certification provides documentation that quality systems are in place and functioning. For industries with traceability requirements, knowing exactly where components come from and how they were made can be essential.
Maintenance and Longevity Considerations
One advantage that surprises first time carbide users is how little maintenance these pins require. Unlike steel pins that might need periodic replacement on a planned schedule, carbide pins often stay in service until a fixture is retired or redesigned.
That longevity creates its own considerations. Engineers need to track which fixtures contain carbide pins and maintain records of installation dates. Not because the pins will fail, but because institutional knowledge can fade over years. A maintenance technician might not realize a particular fixture contains carbide pins and attempt to modify or replace them with inadequate alternatives.
Proper handling also matters. While carbide is extremely hard, it’s also brittle compared to steel. Dropping a carbide pin onto a concrete floor can chip or crack it in ways that a steel pin would survive. During installation, technicians should use appropriate tools and techniques that avoid side loading or impact.
Making the Right Choice for Your Operation
Carbide pins represent a mature, proven technology that solves specific manufacturing challenges. The material science hasn’t changed dramatically in recent decades because it doesn’t need to. Tungsten carbide does what it’s always done: resist wear, maintain dimensions, and keep production equipment running accurately.
For businesses evaluating whether to upgrade from steel to carbide pins, the question isn’t really about the material’s capabilities. Those are well established. The real question is whether the specific application will benefit enough to justify the cost difference. High-volume production, demanding operating conditions, and quality-critical processes all point toward carbide being the right choice.
The manufacturing landscape continues to demand tighter tolerances, faster cycle times, and higher reliability. Components that enable those goals without constant attention or replacement become increasingly valuable. Carbide pins, especially those manufactured to exacting standards with full quality documentation, deliver that value consistently across industries and applications. They’re not the most glamorous parts in a production facility, but they’re often among the most important.
