The transition to electric vehicles (EVs) is accelerating, demanding innovations in manufacturing techniques to keep pace with the industry’s evolution. Sheet metal bending is a cornerstone process in vehicle body construction. It has adapted to meet the unique requirements of electric vehicles.

This article explores the cutting-edge bending techniques shaping the future of EV manufacturing.

What is Sheet Metal Bending?

It is a manufacturing process that transforms flat sheets into desired shapes through force. It is fundamental in creating parts for various industries. As we venture into the domain of electric vehicles (EVs), sheet metal bending becomes even more critical.

This technique ensures components are lightweight yet durable and contributes to efficiency and performance.

Basics of Metal Bending

Metal bending manipulates sheet metal into angles and forms without altering its mass or composition. At its core, the process involves applying force to a metal sheet, causing it to bend at an angle and form a specific shape.

Techniques vary from simple manual bending to sophisticated CNC (Computer Numerically Controlled) operations, accommodating a range of material types and thicknesses. The choice of method depends on factors like the desired precision, bend angle, and production volume.

Importance of Sheet Metal in EV Manufacturing

The EVs demand structures that are not only strong and safe but also lightweight to maximize battery efficiency and range. Here, bending techniques are applied to aluminum and high-strength steel(materials favored for their weight-to-strength ratio). These components form the skeleton of an EV, including its chassis, body panels, and battery housings. Subsequently, the properly executed bends contribute to the vehicle’s aerodynamics and reduce drag.

Additionally, the precision in sheet metal services ensures seamless assembly and contributes to the vehicle’s overall durability and performance. As EVs continue to evolve, the innovation in sheet metal bending techniques will parallel this growth, ensuring that manufacturing processes keep pace with the demands of modern electric mobility.

Traditional vs. Modern Bending Techniques

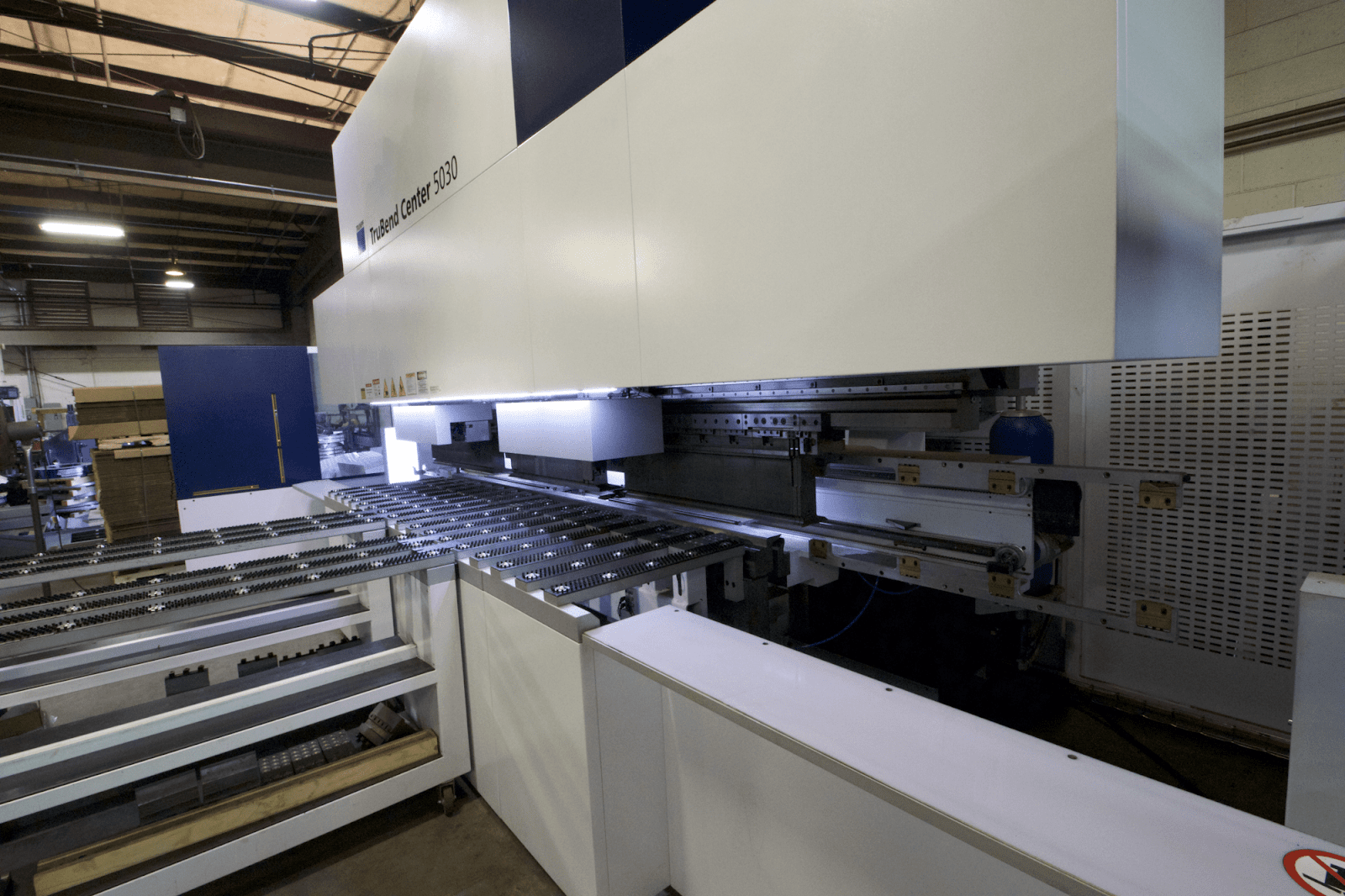

CNC bending

Traditional methods rely on human skill and bending tools, setting the stage for what has evolved into today’s automated, highly accurate CNC bending techniques. This shift reflects the industry’s adaptation to meet increasing demands for efficiency, repeatability, and complexity in parts. As we compare these methodologies, the evolution from traditional to modern practices highlights the balance between artistry and engineering precision in metal fabrication.

Manual Bending

Manual bending refers to shaping metal with hands and simple tools. This process depends on the operator’s expertise, feeling, and judgment to achieve the desired bend. This bending is ideal for low-volume or custom projects. However, it challenges consistency and speed as complexity increases. In essence, manual bending connects us to the roots of metalwork, where skill and experience shape the outcome.

 CNC Bending

On the other hand, CNC bending introduces modern technology into EV’s metal fabrication. Precision and repeatability are its hallmarks, with computer-controlled machines executing complex bends to exact specifications. This bending is the popular choice in Electric vehicle manufacturing. The reasons are;

  • This method facilitates high-volume production with speed and uniformity.
  • CNC bending minimizes human error, enhancing efficiency and material utilization.
  • It represents the EV industry’s forward march toward dominance in the automotive market.

Air Bending Techniques for Electrician Vehicles

Air bending stands out for its flexibility and efficiency. Here, the sheet metal is not completely pressed into the die but instead forms an angle as it comes into contact with the punch and die, leaving a small space between the two. This method allows for a wide range of bend angles from a single set of tools, making it cost-effective and versatile.

Air bending EV part

Moreover, air bending requires less force, reducing wear on machinery and tools. It’s particularly beneficial for EV manufacturing, where diverse part designs and prototypes are common. The process’s adaptability ensures quick adjustments to meet design innovations in the rapidly evolving EV market.

Bottoming and Coining in EV Manufacturing

Bottoming and coining are methods known for their high precision and repeatability. In bottoming, the sheet metal is forcefully pressed against the die, ensuring a more defined bend angle and minimal spring back.

Coining takes this a step further by applying even greater pressure, essentially imprinting the die’s shape into the metal. These methods are invaluable for creating parts with strict tolerance requirements, typical in the electrical systems and battery enclosures of EVs. The ability to produce consistent, high-quality bends ensures the reliability and performance of electric vehicles, where every component must meet exacting standards.

Rotary Bending for Electrician Vehicles

It is a modern technique characterized by its non-marking process and ability to create precise and complex shapes. Unlike traditional methods, it involves the bending of metal using rotating movements. As a result, it minimizes stress and reduces the risk of damaging the material’s surface.

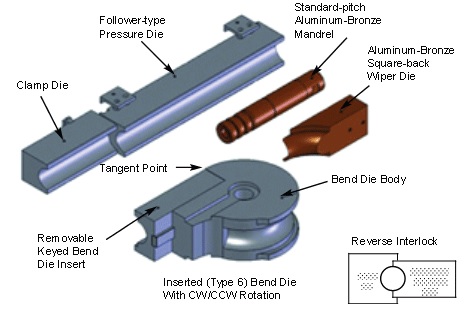

Rotary bending

This method is particularly suitable for pre-painted or delicate materials often used in visible parts of an EV, such as exterior panels and trims.

Rotary bending’s efficiency and precision support the fast-paced development and production cycles of the EV industry. This technique aligns with the industry’s need for rapid prototyping and manufacturing, allowing for quick adjustments and iterations in design without compromising on quality or causing material wastage.

Summary of Sheet Metal Bending Techniques for Electrician Vehicles

Overall, sheet metal bending techniques are essential in manufacturing electric vehicles as they offer precision, efficiency, and aesthetic integrity. These methods ensure components are lightweight, durable, and meet the EV manufacturing standards.

TechniqueKey BenefitsIdeal for
Manual BendingFlexibility, cost-effectiveLow-volume, custom projects
CNC BendingPrecision, repeatabilityHigh-volume, complex shapes
Air BendingEfficiency, versatilityVaried bend angles, minimal tool wear
Bottoming & CoiningHigh precision, low spring backComponents with tight tolerances
Rotary BendingSurface integrity, complex bendsAesthetic parts, pre-painted materials

The significance of sheet metal bending techniques in electric vehicle (EV) manufacturing showcases the industry’s adaptation to modern demands for efficiency, precision, and sustainability. From manual methods to advanced CNC bending, each technique offers unique advantages and caters to different aspects of EV production.

Air bending, bottoming, coining, and rotary bending each play a critical role in EV’s component manufacturing. They ensure that bends are aesthetically pleasing and meet high performance and durability standards.
